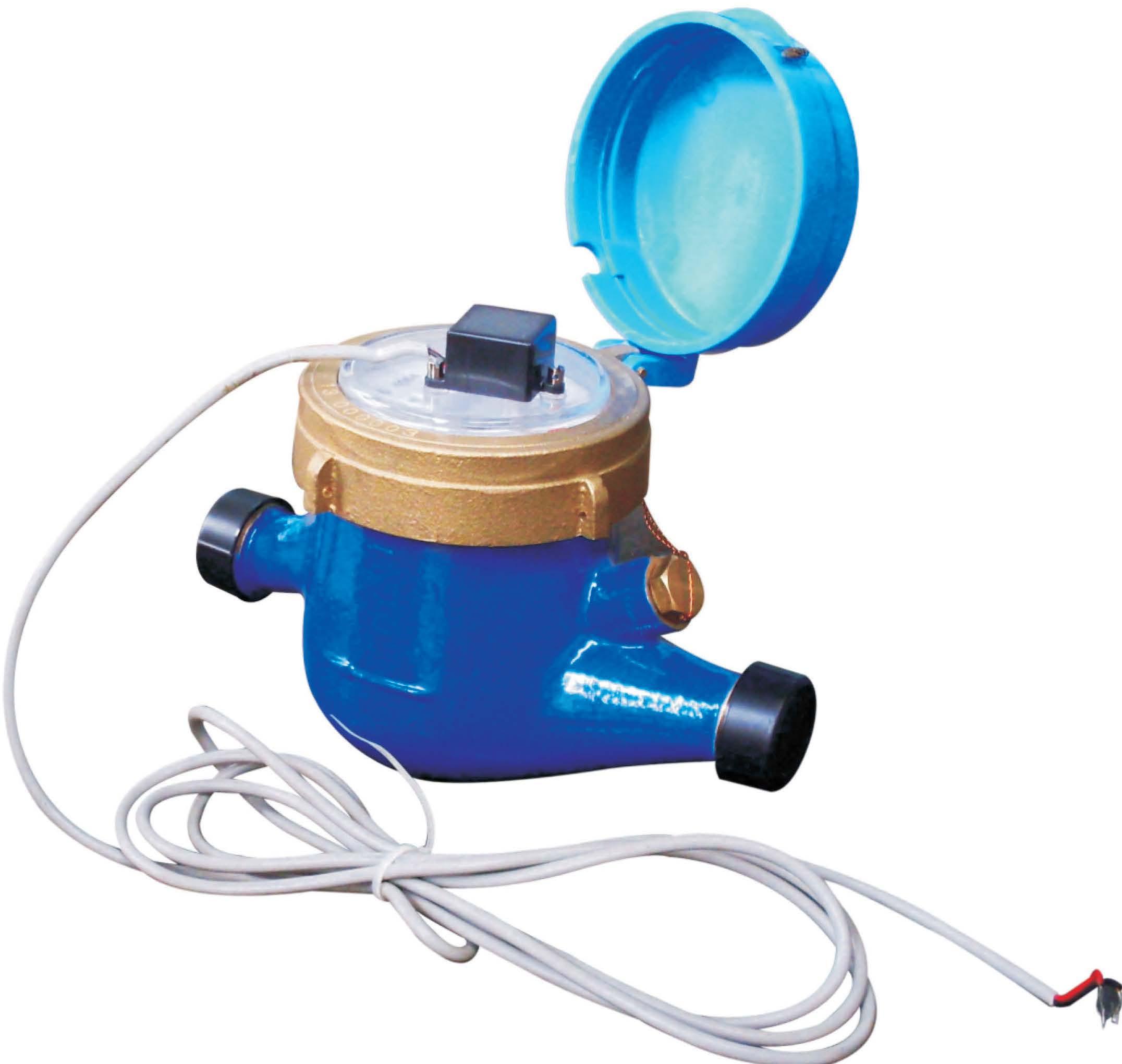

With Pulse 0/P & Pulse 0/P Ready
FM-104/P
FM-104/P-R
Reed Sensors:
The reed sensor is designed as a potential-free normally open contact. It is closed with a frequency proportional to the flow rate by a serially integrated magnet within the counter and opens itself automatically again. Typical pulse values are 10 LJP and 100 LJP depending on meter size and mounting position. The reed sensor does not require its own power supply and is therefore the ideal partner for all electronic devices which run on batteries.
Salient Features:
Data Output Options:
1 O LJP (for 15mm & 20mm),
1 O LJP or 100 LJP (for 25mm to 50mm)
Read Switch Electric Data:
Voltage: 9V DC max
Current: 0.01 A max
Conformity to Standards and Codes:
Design: IS 779 / ISO 4064
Meter Testing: Approved as per IS 779 Confirms to IS 6784 / ISO 4064 / OIML R-49

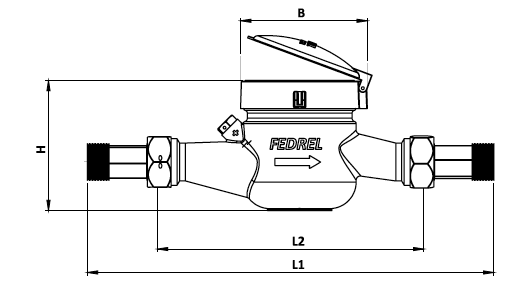

Size Range: 15mm (½”)to 50mm (2″)
Working Temperature Ratings:
For cold <45°c
Applications:
