CO2 Sensor
Application

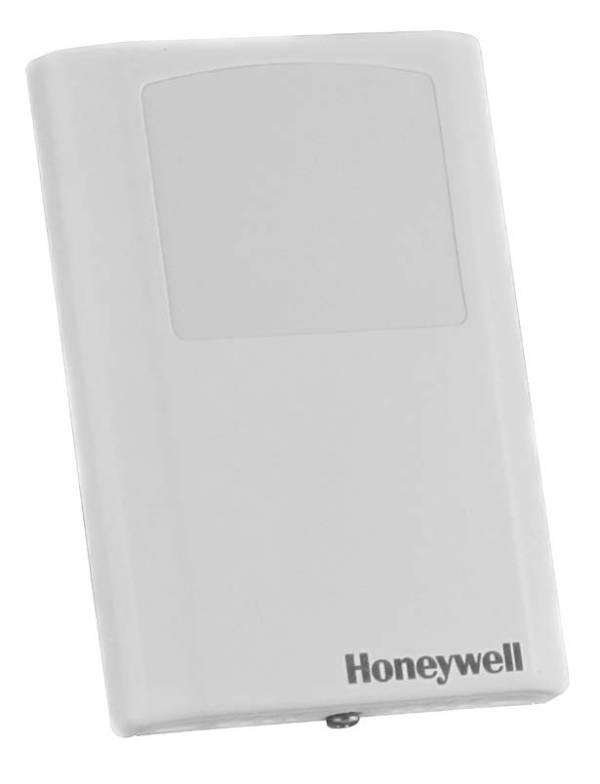

The HCERMC wall mount CO2 sensor is designed for use with electronic controllers in domestic or commercial heating and cooling systems.
CO2 Sensor
| CO2 Sensor | Dual wavelength non-dispersive infrared (NDIR) |
| Range | 0-2000 ppm |
| Accuracy | ± (50 ppm + 3% of reading) |
| Pressure Dependency | < 1% of reading / kPa |
| Response Time | 2 minutes (T90) |
| Warm-up Time | 1 minute |
| Sensor Life Span | > 10 years |
| Power Supply | 24 Vac/dc ± 20% (non-isolated half-wave rectified) |
| Consumption | 80 mA max @ Vdc, 160 mA max @ 24 Vac |
| Protection Circuitry | Reverse voltage and transient protected |
| Output Signals | 4-20 mA, 0-5 Vdc, 0-10 Vdc (field selectable) |
| Drive Capability | Current: 600Ω max @ 24 Vdc Voltage: 10KΩ min |
| Operating Conditions | -10 to 50°C (14 to 122°F), 0-90 %RH, non-condensing |
| Storage Conditions | -30 to 70°C (-22 to 158°F) 0-85 %RH non-condensing |
| Wiring Conditions | Screw terminal block (14-22 AWG) |
| Enclosure | ABS, UL94-V0, IP30 (NEMA 4X) |
| Optional Temperature Sensor | Various RTDs of thermistors as a 2 wire resistance output |
| Approvals | CE, RoHS |
