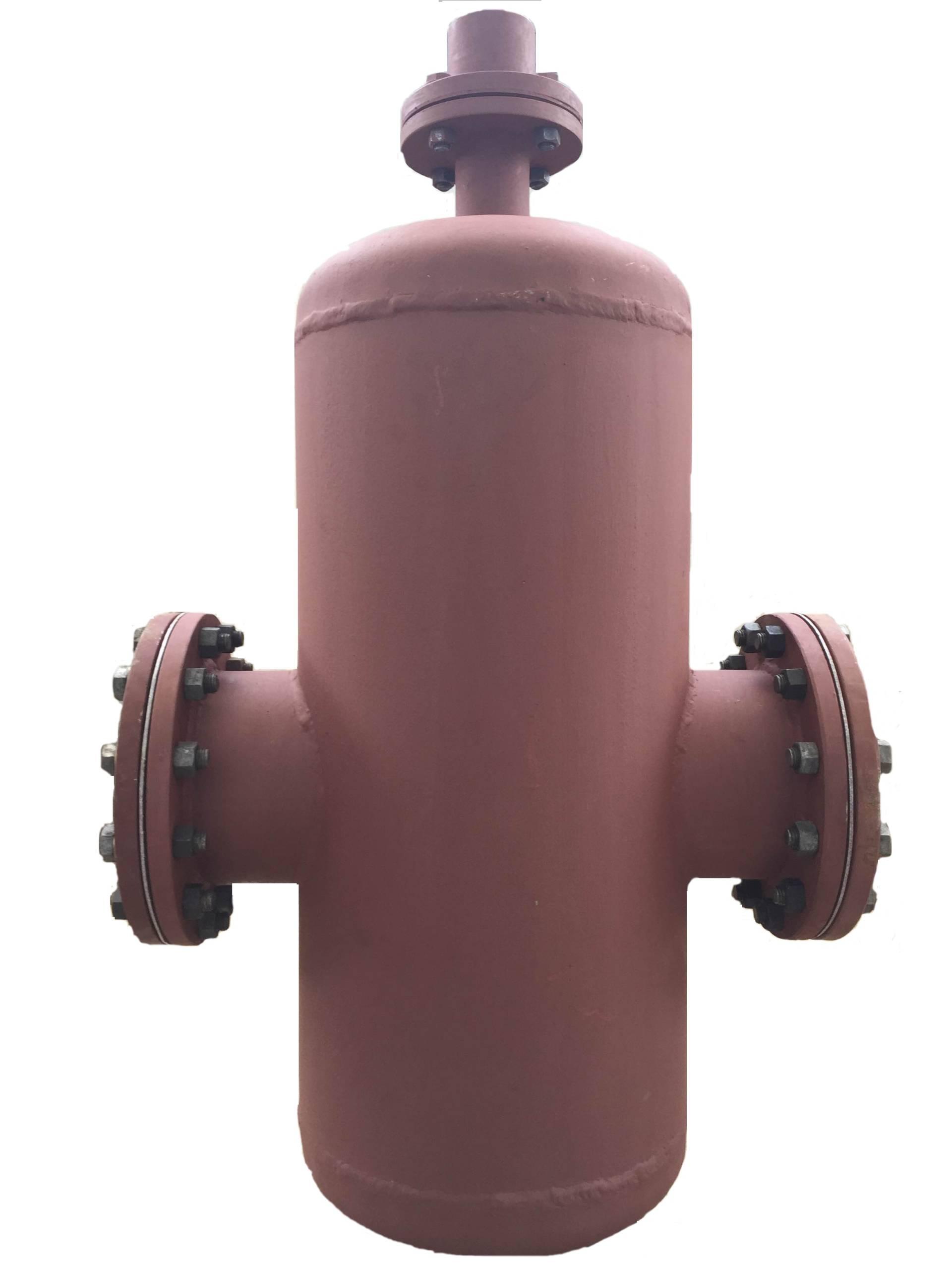

      Air & Dirt Separator

      Features

    • Air separation process based on the concept of coalescence, micro-bubbles tend to adhere to a surface and then grow together to form larger air bubbles
    • SS Pall rings used to provide
      • Large surface area per volume
      • High probability of collision and adhesion of micro-bubbles, as the fluid flow gets deflected in different directions
      • Minimal resistance to fluid flow
    • High capacity auto airvent
    • Separation of dirt particles heavier than water is facilitated by
      • Low water velocity
      • Deflection of fluid stream in many different directions by the pall rings
      • Creation of non-turbulent zone in the extended lower part
    • Ball valve at the bottom to drain the collected dirt particles
    • Benefits

    • Removes air micro-bubbles
      • Increases heat transfer efficiency
      • Reduces chances of air lock
    • Better air separation than centrifugal action
    • Reduces corrosion in piping and sludge formation
    • Removes impurities heavier than water
      • Prevents choking of strainers
      • Prevents damage to pumps and other equipment
    • Better dirt removal than perforated sheet strainer

    • Category: Product ID: 3170
