Description
| Parameters |

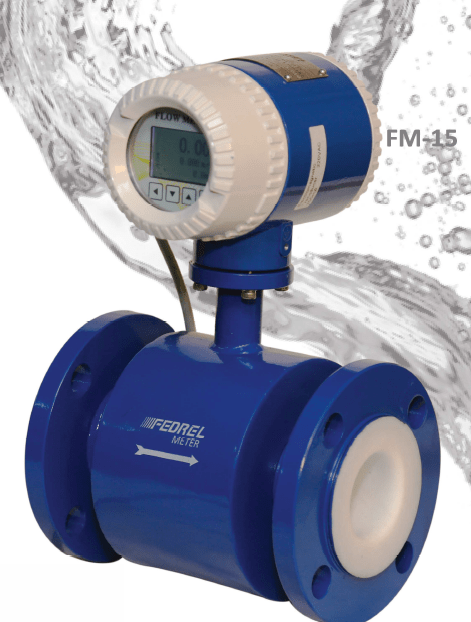

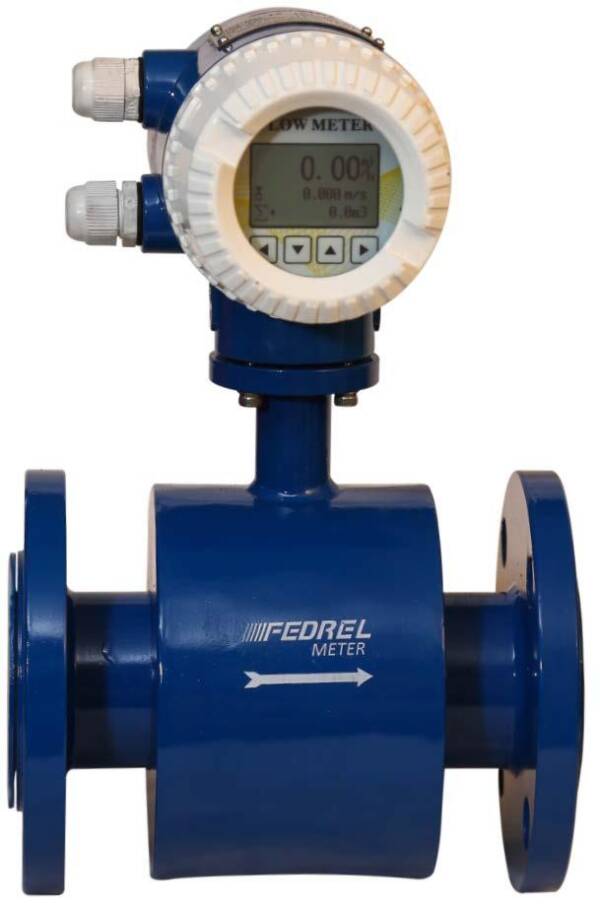

FM-15 |
FM-15-R |
| Nominal Diameter (mm) |
25 to 400 mm |
25 to 1000 mm |
| Working Pressure |
10, 16,25 ,40* |
-1 0°c to 150°c |
| Electrode Material |
SS 316 L Std* |
SS 316 L Std* |
| Sensor Lining |
PTFE* |
PTFE* |
| Display Version |
Integral |
Divided |
| Measuring Tube Material |
SS 304 Std* |
SS 304 Std* |
| Sensor housing material |
Std. CS* |
Std. CS* |
| End Connection |
Flange |
Flange |
| Flange – Standard |
ANSI #150* |
ANSI #150* |
| Measuring Range |
0.2 to 1 O m/sec. |
0.2 to 1 O m/sec. |
| Accuracy % |
±0.5 % (±0.2% consult factory) |
±0.5 % (±0.2% consult factory) |
| Repeatability |
±0.2 % span |
±0.2 % span |
| Display |
2 line LED |
2 line LED |
| Display Units |
All standards units in m3, Littre, gallon,ft3 |
All standards units in m3, Littre, gallon,ft3 |
| Output |
Std 4-20 mA* |
Std 4-20 mA* |
| Power Supply |
SStd. 220 V AC Option of 24 V DC, Battery |
Std. 220 V AC Option of 24 V DC, Battery |
| Protection Class for sensor |
Std. IP-68* |
Std. IP-68* |
| Protection class for transmitter |
IP-65 |
IP-65 |

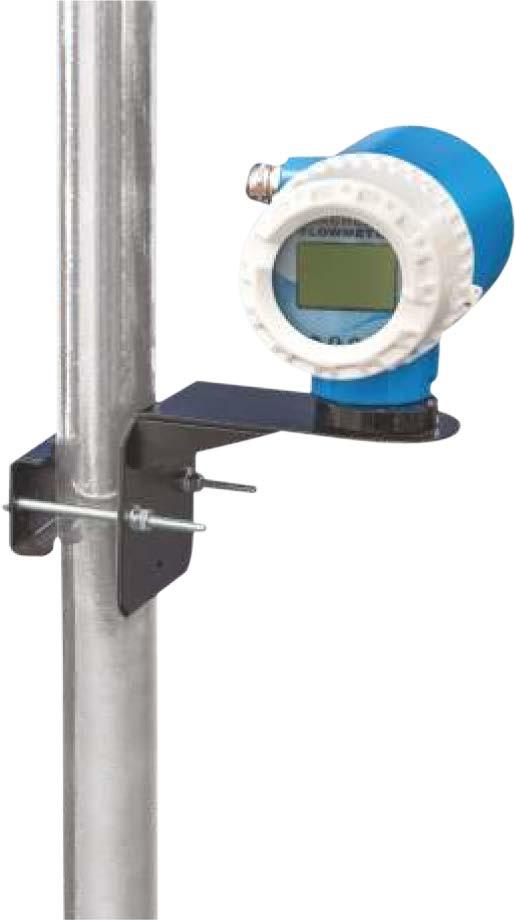

| Cable length for remote |
NA |
Std. 5 m* |
| Installation |
lnline flanged Type |
lnline flanged Type |
