      Electromagnetic BTU Flow Meter

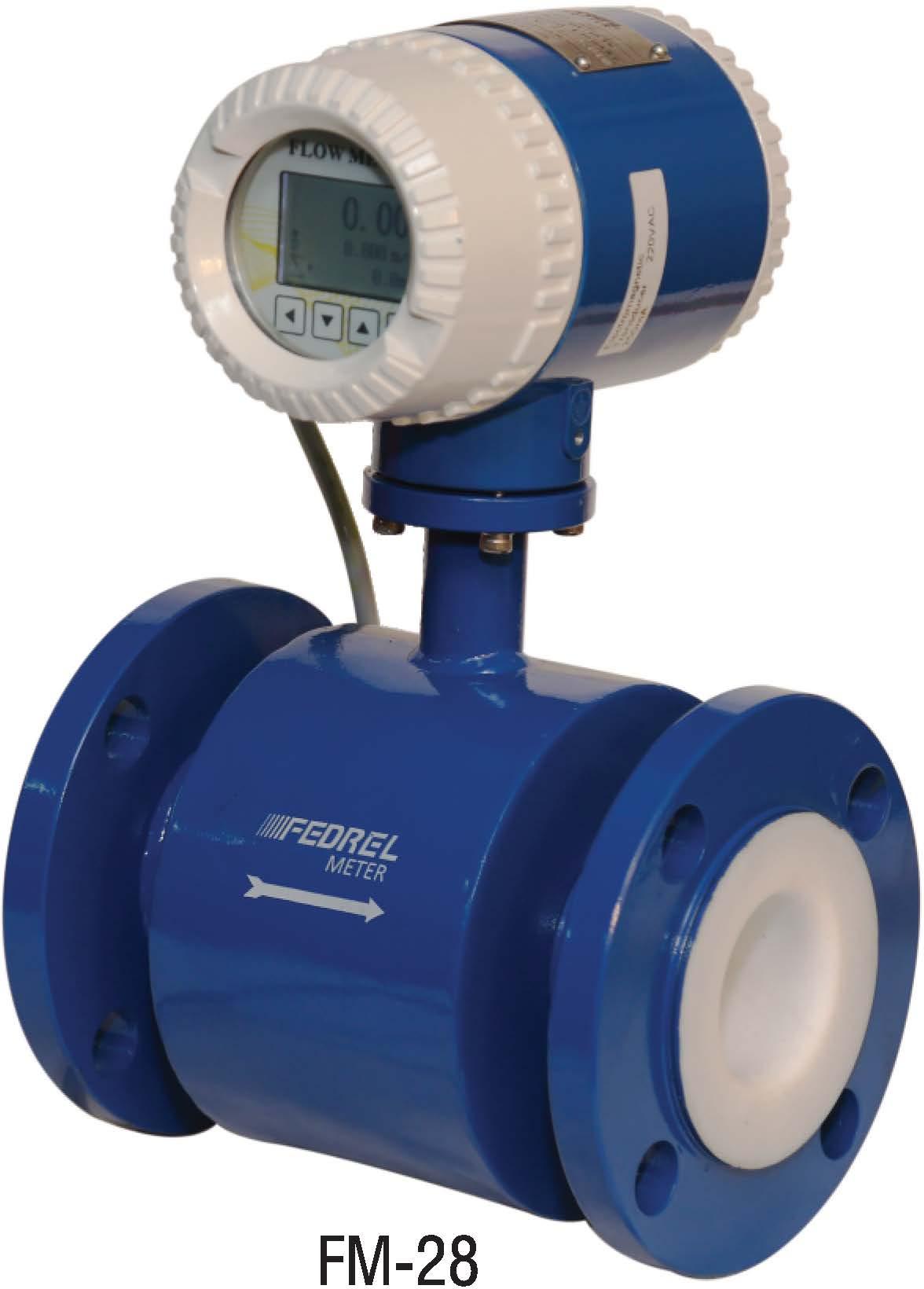

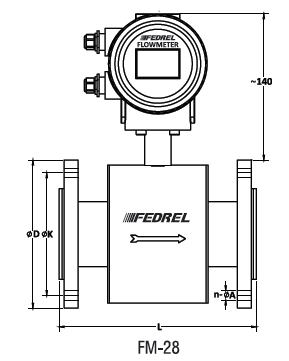

      FM-28

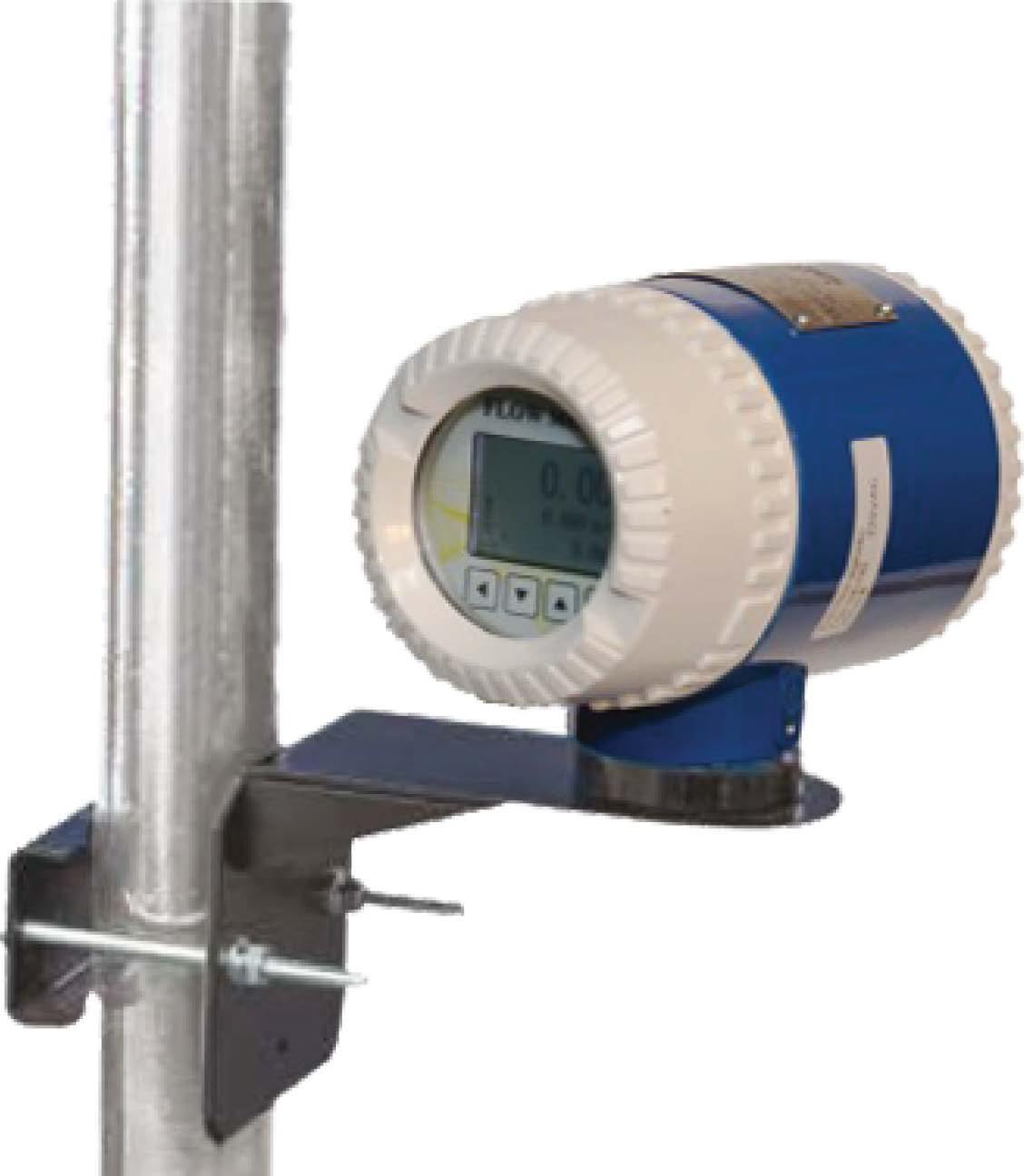

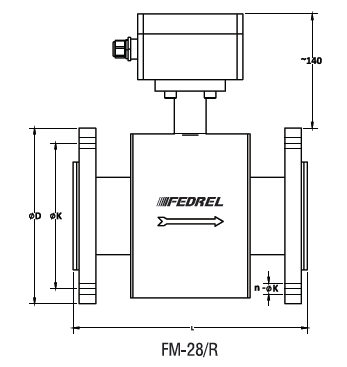

      FM-28-R

      Features:

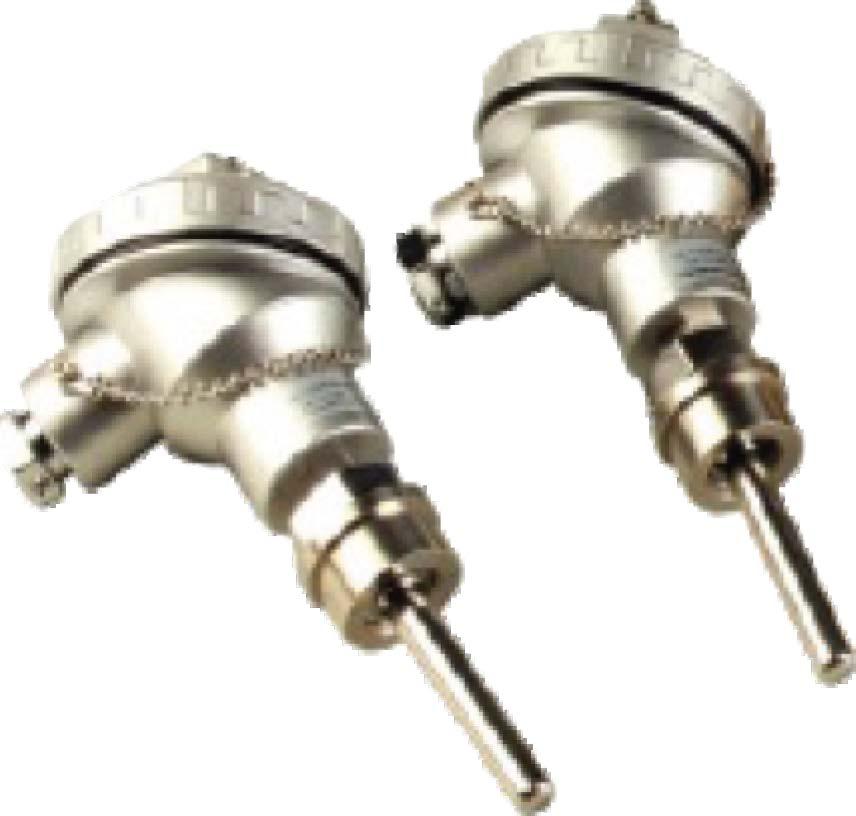

      BTU Cal FM- meter is the latest addition to the Fed rel series for accurate thermal energy measurement. It utilizes a high-accuracy electromagnetic flowmeter to measure the flow volume of the chilled water; hot water or condensed water, and two matched temperature sensors to measure the supply and return temperature. FM- Fedrel provides abundant input-output and communication options which make it easy to be integrated into any meter reading system, PLC or BMS system.

      Salient:

      • High accuracy, billing grade. Up to 0.5% accuracy for fow, 0.15°F (0.08°C) for the temperature difference
      • Plug and play. All parameters are pre-configured in the factory
      • Integrated BTU measurement system. Single source responsibility
      • Bi-directional
      • Short straight-pipe run, thus, suitable for any desired installation location
      • No moving parts to wear and tear. Save maintenance cost
      • Standard output 4-20mA, pulse, dry contact (relay)
      • Optional MODBUS, HART

      Applications:
      The FM- 28 are high-performance BTU meter accuratel{measures the thermal energy consumption or transportation of a heating/cooling system. It is an ideal choice for a wide range of applications in HVAC, heating/cooling energy production, energy transfer, building management, facility management, district heating and cooling, geothermal or solar hot water system monitoring, and more.

      Category: Product ID: 2656

      Description

      Parameters

      25 to 1000 mm

      25 to 600 mm
      Working Pressure

      10, 16,25,40*

      10, 16,25,40*
      Working Temperature

      -10°C to 150°C

      –10°C to 150°C
      Electrode Material

      SS 316 L Std*

      SS 316 L Std*
      Sensor Lining

      PTFE*

      PTFE*
      Display Version

      Integral

      Divided
      Measuring Tube Material

      SS 304 Std*

      SS 304 Std*
      Sensor housing material

      Std. CS*

      Std. CS*
      End Connection

      Flange

      Flange
      Flange – Standard

      ANSI #150*

      ANSI #150*
      Measuring Range

      0.1 to 10 m/sec.

      0.1 to 10 m/sec.
      Accuracy %

      ±0.5%(±0.2% consult factory)

      ±0.5%(±0.2% consult factory)
      Repeatability

      ±0.2 % span

      ±0.2 % span
      Display

      2 line LED

      2 line LED
      Display Units

      All standards units in m3, Littre, gallon,ft3

      All standards units in m3, Littre, gallon,ft3
      Output

      Std 4-20 mA*

      Std 4-20 mA*
      Power Supply

      SStd. 220 V AC Option of 24 V DC, Battery

      Std. 220 V AC Option of 24 V DC, Battery
      Protection Class for sensor

      Std. IP-68*

      Std. IP-68*
      Protection class for transmitter

      IP-65

      IP-65
      Cable length for remote

      NA

      S Meter
      Totalizer

      Energy, Flow Totalizer

      Energy, Flow Totalizer
      Installation

      lnline Ranged Type

      lnline Ranged Type
