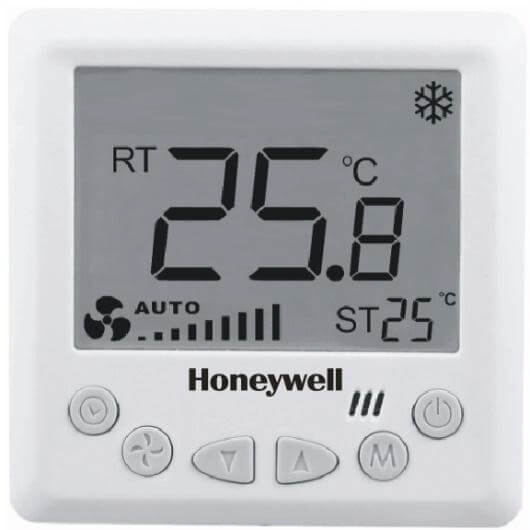

      FCU Thermostat with Energy Savings Mode

      2-pipe/4-pipe Fan Coil Control

      • 2/4-Pipe Cooling / Heating Manual / Automatic Changeover
      • Manual or Automatic 3-speed fan control
      • Option for using NTC10K external sensor
      • Temperature Deviation Correction Function (Offset Adjustment)
      • Low-Temperature Anti-freeze function
      • Keypad lock options
      • Energy Savings Mode
      • Configurable Control Algorithm
      • Option for sleep mode



      Category: Product ID: 2625

      Description

      Application

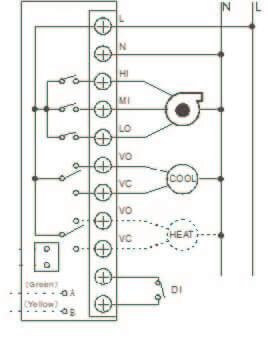

       The WME series of Digital thermostats are designed for a 3-speed fan and a motorized valve control in fan coil system. The typical application including:

      2/4-pipe cool only/heat only/manual changeover

      Ventilation mode

      Manual or automatic 3-speed fan control

      Water valve on/off control



      Technical Specifications

      Rated voltage &
      Frequency

      100~240 VAC±10%, 50/60HZ

      Setpoint range

      5~45OC step 1OC

      Control Accuracy

      ± 1OC at 25OC

      Temperature display resolution

      0.1OC

      Display range

      0~50OC

      Built-in Temperature Sensor

      NTC 10K

      Working current for the whole product

      5(3)A

      5A : When the load of the thermostat is resistance

      3A: When the load of the thermostat is inductance

      For Fan Load:

      5A: when the load is resistance

      2A: when the load is inductance

      For Valve Load:

      5A: when the load is resistance

      2A: when the load is inductance

      Power consumption

      2W

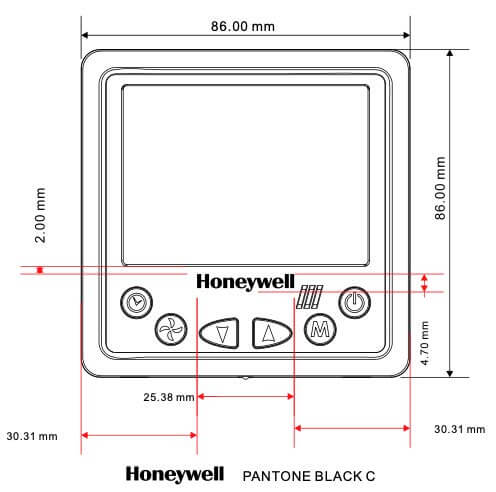

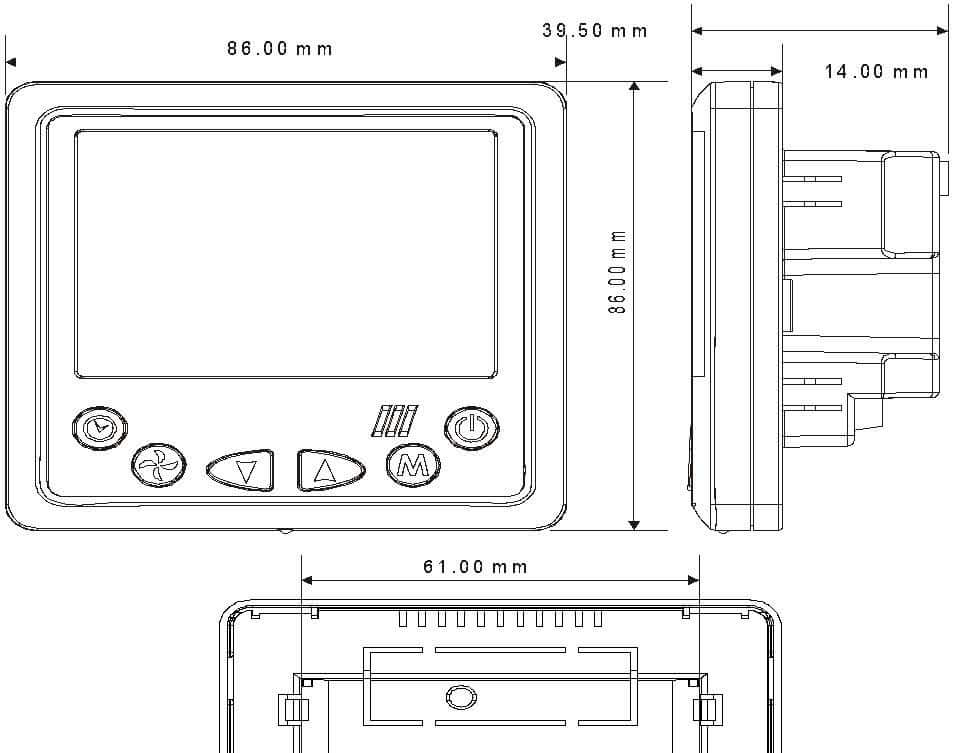

      Installation

      Install on 86x86x14mm junction box
