Water Flow Switch (Parallel Type)
Features
- Simple and rugged construction
- Suitable for non-corrosive fluids
- Indicates the presence or absence of water flow to start and stop electrically operated equipment in a flow or no-flow condition
- Can be used for monitoring flows in horizontal and vertical pipelines with upward water flow
- Available in different models
Principle of Operation

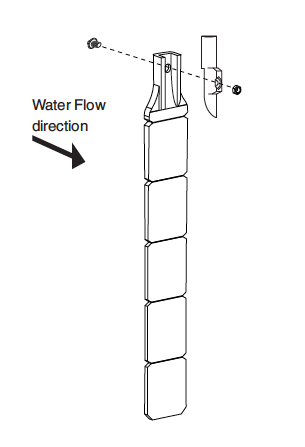

When the water flow hits the paddle of the flow switch, it operates an SPDT switch.
Water Flow Switch
| Model | FSW - B-251 | |
| Connection | 1" BSP | |
| Materials | Body | Brass |
| Base plate | Stainless Steel | |
| Paddle | Stainless Steel | |
| Cover | ABS | |
| Contact type | SPDT | |
| Contact Rating | 10Amps,230V AC, 50 Hz, 1 Ph | |
| Media temp. | 0° to 120°C | |
| Permissible ambient temp. | 0° to 80°C | |
| Max. operating pressure | 10 bar(16 bar optional) | |
| Protection | IP 54 |
