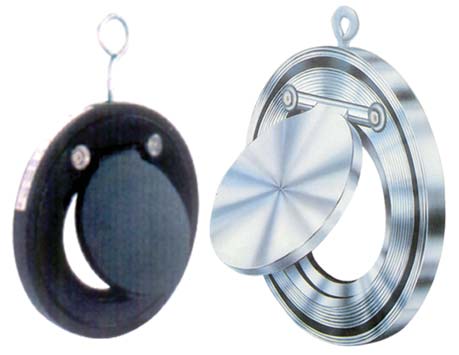

Wafer Check Valve
MOC: CI, DI, SS
Specifications & Features
- Light Weight.
- Easily Installed.
- Bonded Resilient seat option.
- Extremely Compact.
- Tight Shut-Off.
- Radiography clear disc and shaft welded for best strength.
- Economical.
- One moving Part
- Low maintenance.
- Interchangeable disc design.
Applications
Wafer check Valve suitable for Water and Oil.
Wafer Check Valve
DN | 40-300 | |
NOMINAL PRESSURE MPa | 1.0 MPa | 1.6 MPa |
SI-IELL TEST MPa | 1.5 MPa | 2.4 MPa |
SEAT TEST MPa | I.I MPa | 1.76 MPa |
WORKING TEMPERATURE | 20°C to 200°C | |
MEDIUM | Water, Waste Water | |
MATERIAL | Ductile Iron | |
PNEUMATIC SEA1' TEST | 0.7 MPa |
Category: Non Return Valve
Product ID: 2961
