Manual Butterfly Valve
MOC: CI, DI, Aluminium (AL), SS
General

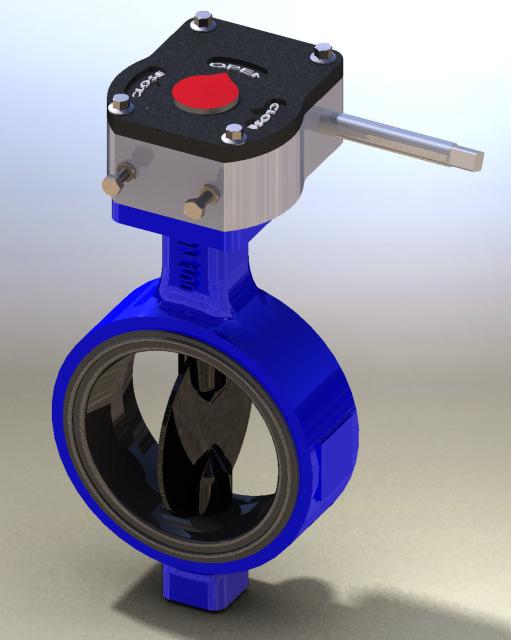

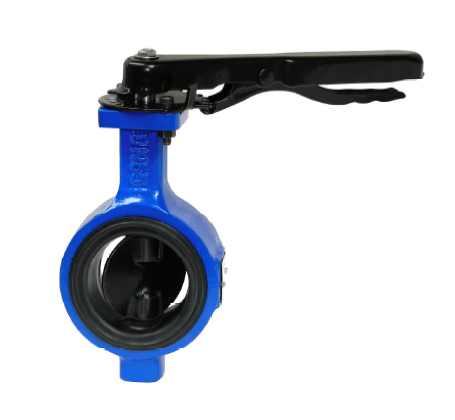

The BS-HWC4 Manual Butterfly Valves is designed for Chilled & Hot Water to be operated by Hand lever or Gear Box (BS-MWC4)
Features
- Wide Size range (DN50…DN900)
- Operated by Lever or Gear Box.
- 90 deg opening/closing operation.
- Cast iron Body with powder coating.
- Epoxy Coated Ductile Iron disc.
- Wafer type Connection
Manual Butterfly Valve
|
Sizes |
DN50…DN900 |
|
Nominal pressure |
PN16, PN25 |
|
Medium Temperature |
-10C ~ +110C Maximum |
|
Body Material |
IS: 210, FG 220 CI |
|
Stem Material |
ASTM A276, GR SS 410 |
|
Disc Material |
Epoxy Coated Ductile Iron Disc |
|
Lever |
CRCA SHEET |
|
Leakage Rate |
No visible leakage |
|
Medium Type |
Water |
|
Flange standard |
IS 1538 |
|
Shell Test pressure |
24bar |
|
Seal Test pressure |
17bar |
