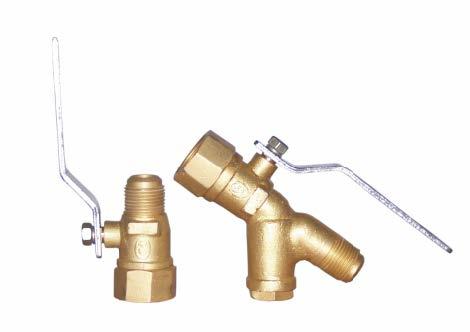

Ball Valve with Y Strainer
Features
Ball Valves are manufactured & supplied With & Without Strainer with Steel Handle for easy and maintenance free operations.
Construction Features:
Forged Brass Body, Brass stem & Hot Pressed Brass / S.S. Ball with Teflon seals & ‘O’ rings around the neck of Ball suitable for most applications & possess outstanding resistance to heat and recommended for use upto 25 BAR (PN-25) Maximum Working Pressure.
Ball Valve with Y Strainer
END CONNECTION | SCREWED ENDS AS PER BS 21 |
OPERATED | BY HAND LEVER |
STRAINER | Y-TYPE |
TOP COVER | FORGED BRASS TO IS 6912 Gr. FLB |
PRESSURE RATING | PN-16 |
STEM | FORGED BRASS TO IS 6912 Gr. FLB |
HANDLE | MS + Nickel Plated PVC Jacketed |
BODY | FORGED BRASS TO IS 6912 Gr. FLB |
GLAND PACKING | PTFE |
BALL | FORGED BRASS TO IS 6912 Gr. FLB (Chrome Plated) |
SEAT | PTFE |
Category: Ball Valve
Product ID: 2936
