Angle Type Safety Valve
MOC: Brass, CI
Salient Features
- Screwed Male End to IS 554 / BS 21 / ISO7.
- Enclosed Discharge Type.
- Metal to Rubber contact seating.
Test Pressure (Hydrostatic) :
Shell : 21.10 kg/cm²g (300 psig)
Seat : 10.55 kg/cm²g (150 psig)
Set Pressure Range : 0-10 kg/cm²g (Max.)
Maximum Working Temperature : 80°C
Suitable For Water, Oil, Air
Angle Type Safety Valve

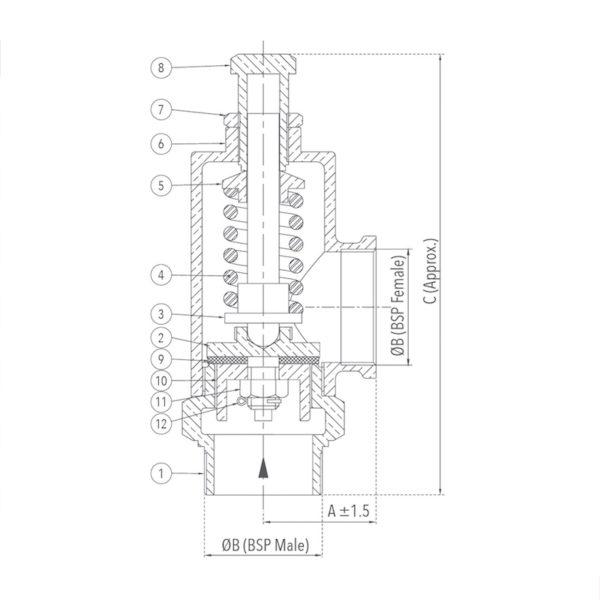

| Name of Part | Material of Construction | Specification |
| Body | Bronze | IS 318 Gr. LTB 2 |
| Disc | Bronze | IS 318 Gr. LTB 2 |
| Stem | Forged Brass | IS 6912 Gr. FLB |
| Spring | Spring Steel | EN 47 Gr. B |
| Spring Disc | Bronze | IS 318 Gr. LTB 2 |
| Chamber | Bronze | IS 318 Gr. LTB 2 |
| Check Nut | Bronze | IS 318 Gr. LTB 2 |
| Adjusting Screw | Bronze | IS 318 Gr. LTB 2 |
| Disc Facing | Nitrile Rubber | IS 5192 – 1 |
| Guide | Bronze | IS 318 Gr. LTB 2 |
| Nut | Brass | – – – |
| Split Pin | Brass | – – – |
Category: Pressure Relief Valve
Product ID: 2974
