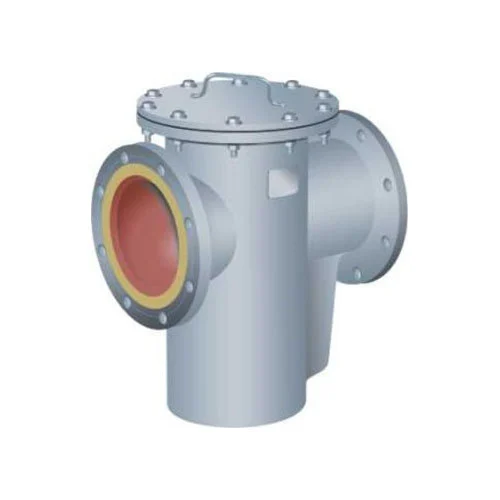

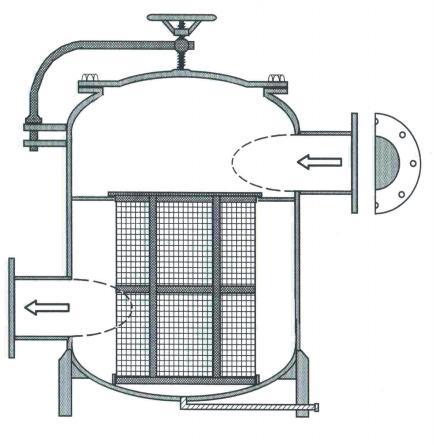

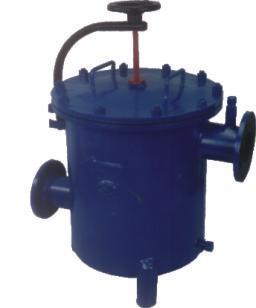

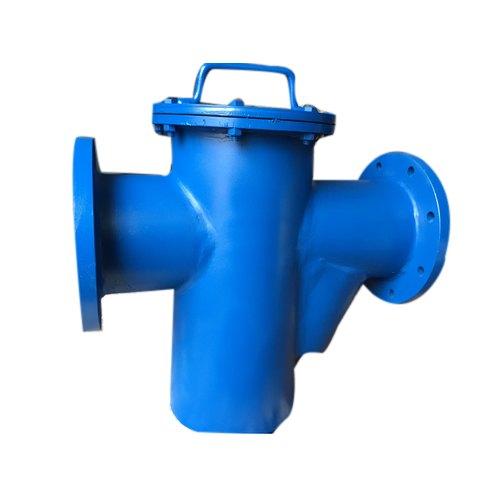

Pot Strainer
MOC: CI / MS / SS
Features
- New technology for dirt removal.
- Uses Pall rings instead of perforated sheet strainer.
- SS Pall rings provide minimal resistance to fluid flow.
- Compact size.
- Provision to install auto airvent at top to remove air.
- Separation of dirt particles heavier than water is facilitated by:
- Low water velocity.
- Deflection of fluid stream in many different directions by the pall rings.
- Creation of non-turbulent zone in the extended lower part.
Benefits
- Removes impurities heavier than water:
- Prevents choking of strainers.
- Prevents damage to pumps and other equipment.
- Low pressure drop.
- Better dirt removal than perforated sheet strainer.
- I t is clog resistant and does not require system shutdown or bypass the system to clean it.
- No need to open the top cover and to remove strainer for cleaning.
- Debris, lighter than water, which generally chokes the perforated strainer floats to the top and can easily be removed by opening top dead plug and draining the water.
